Description

This unit came working out of a facility.

• This unit was manufactured in August of 2022.

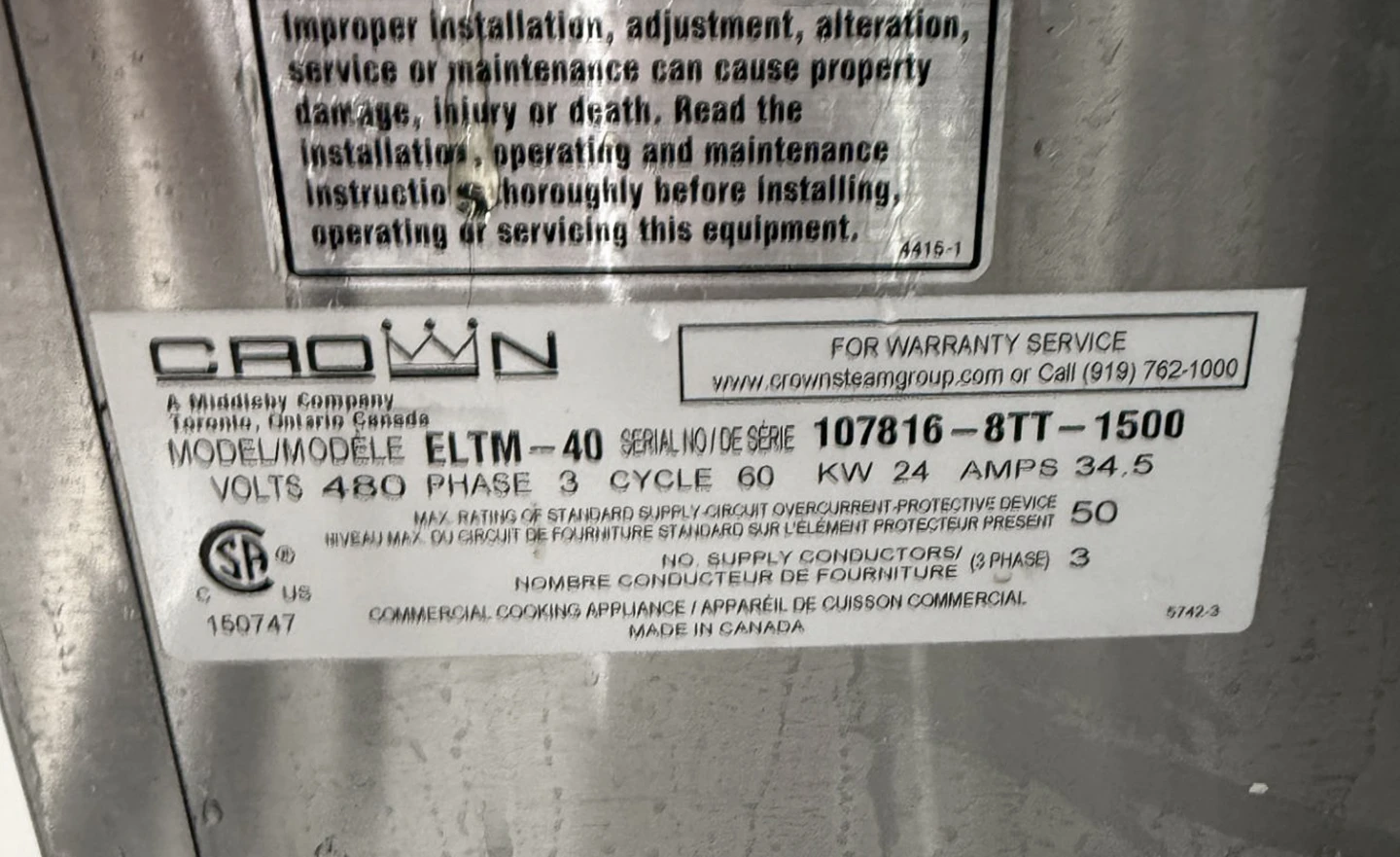

• The serial number is 1078168TT1500.
• This unit only comes with what is shown, we do not have any additional accessories.

Key Features

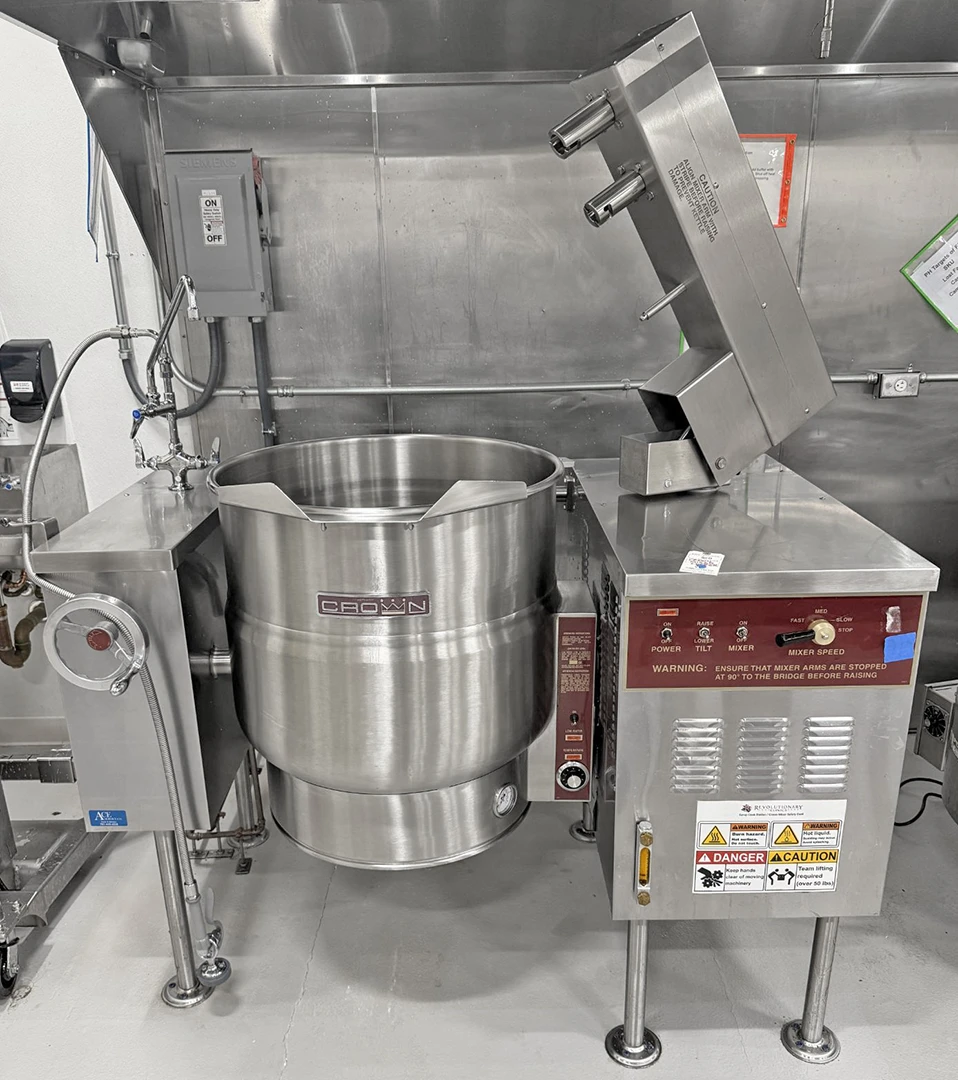

• 40-gallon (151-liter) self-generating electric tilting mixer kettle
• Double-wall steam jacket covering lower 2/3 of the kettle

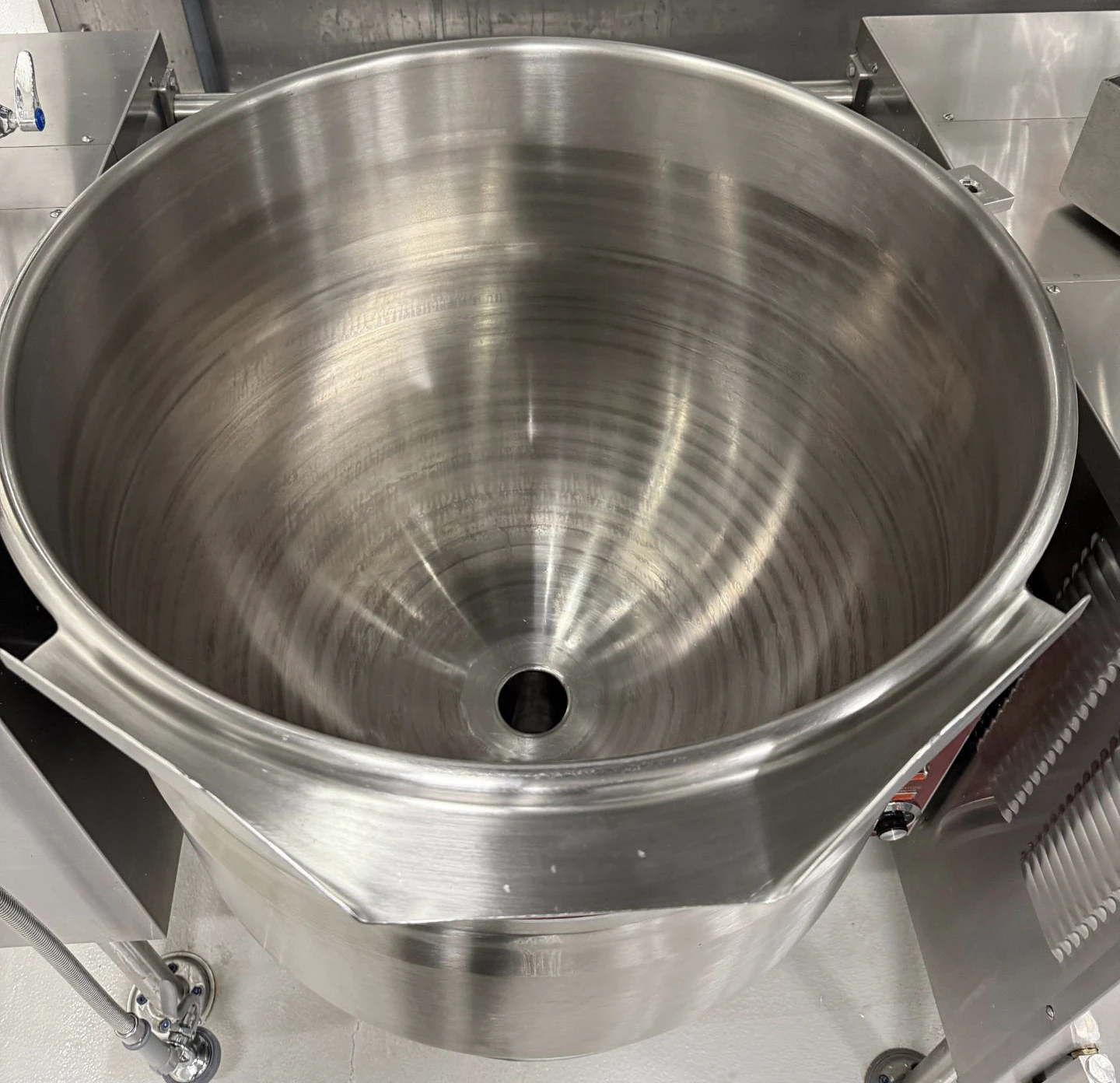

• 304 stainless steel exterior with 316 stainless steel liner

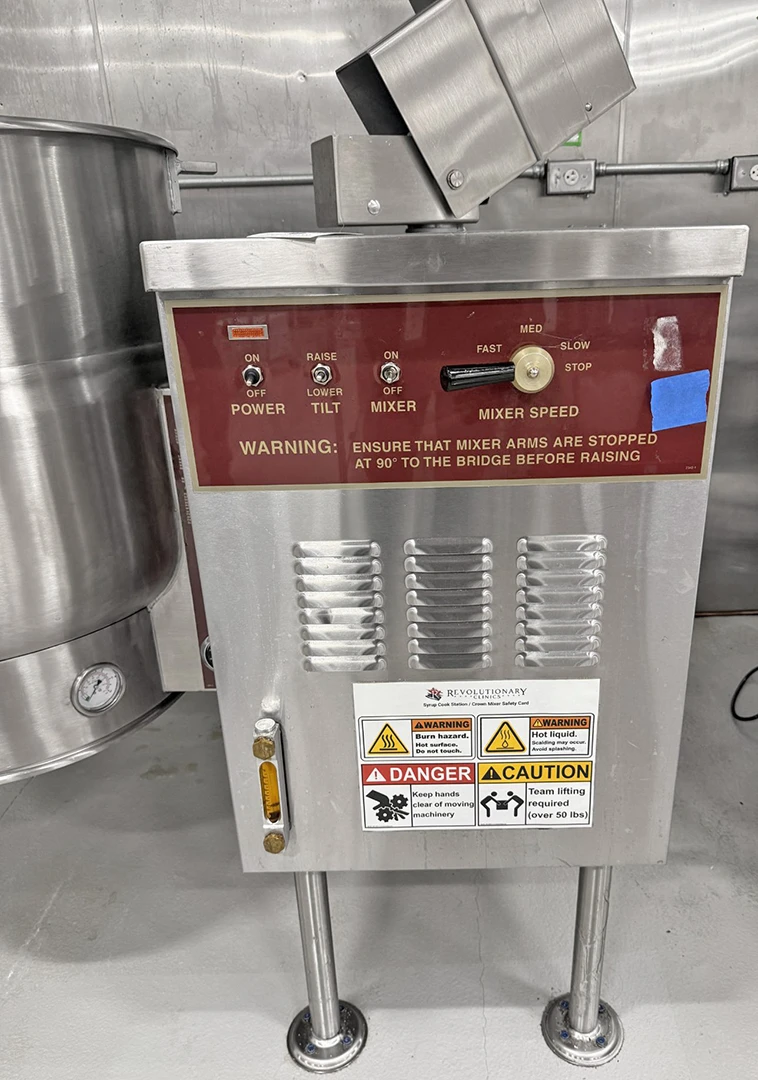

• Hydraulic-powered mixer with variable speed control

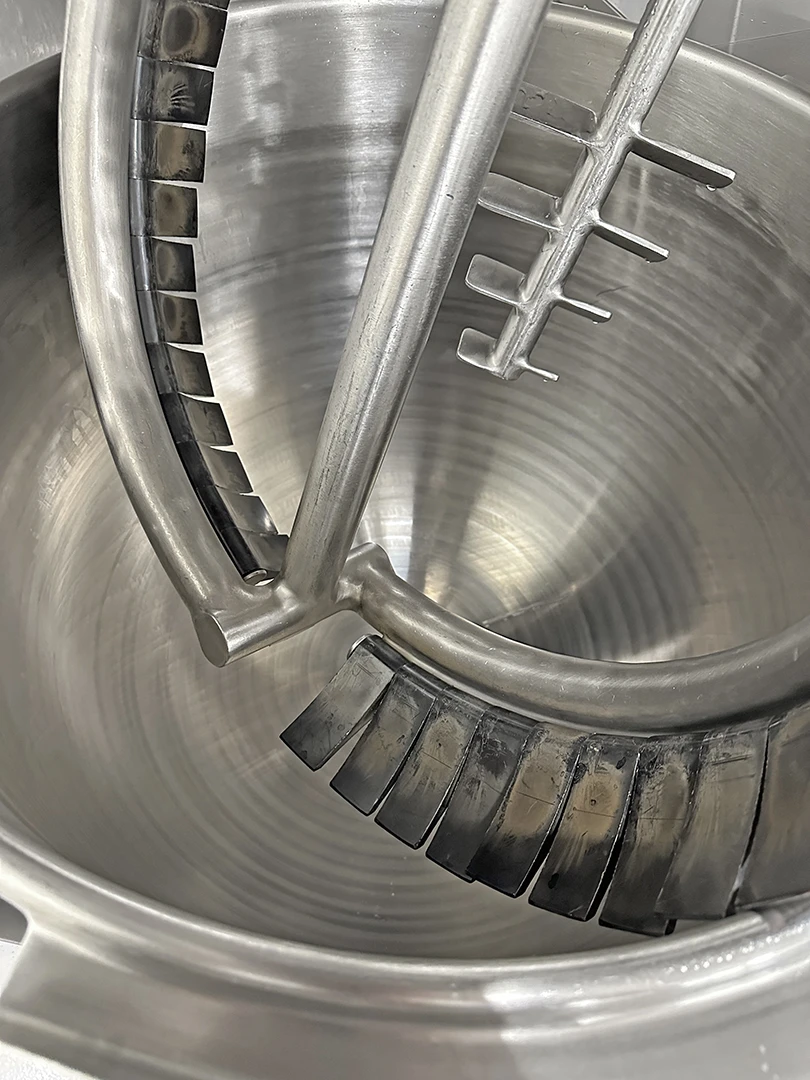

• Two removable agitators: scraper/agitator and high-speed mixer

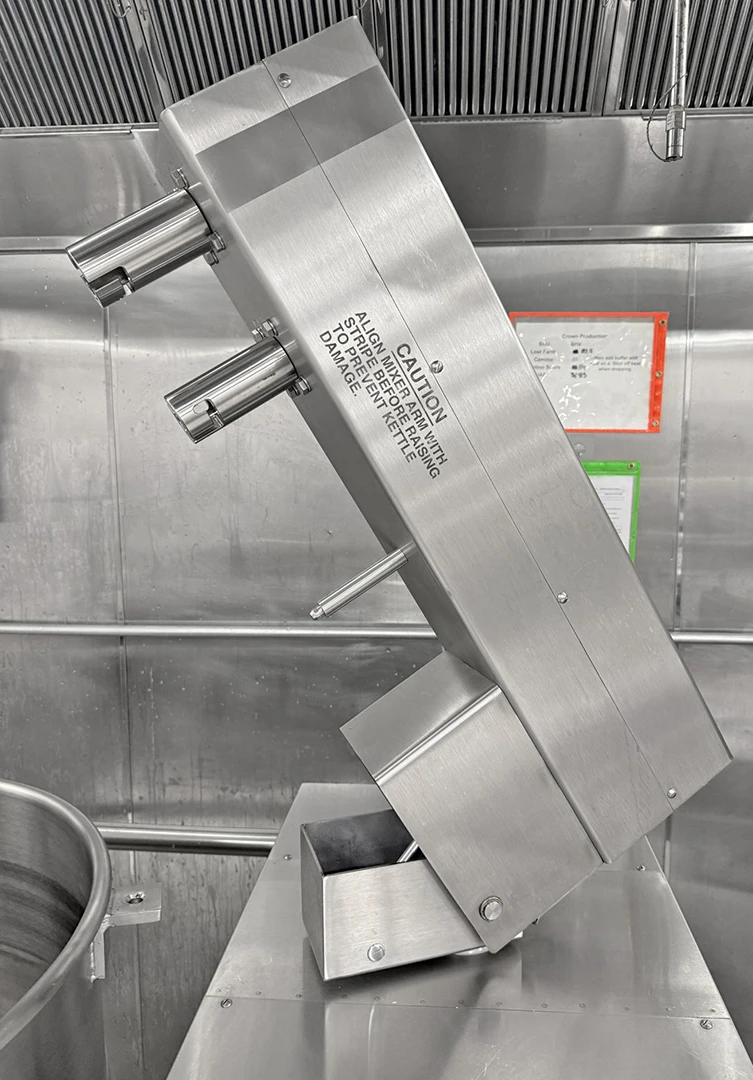

• Bridge-mounted mixing system swings 140° for easy access

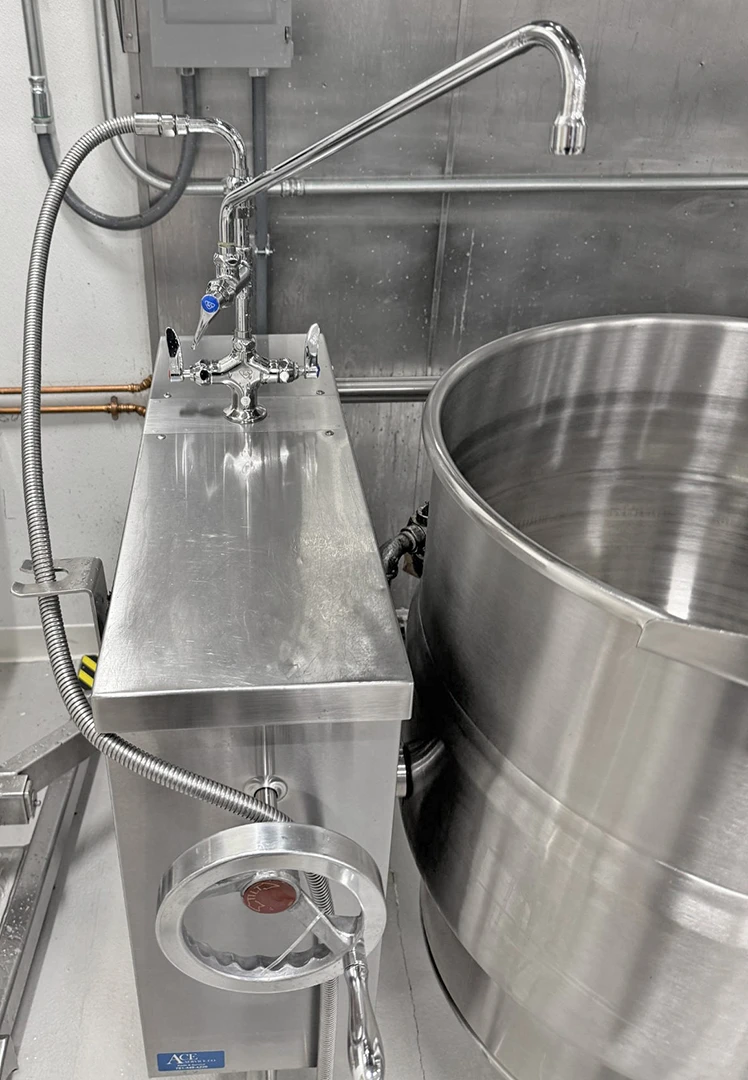

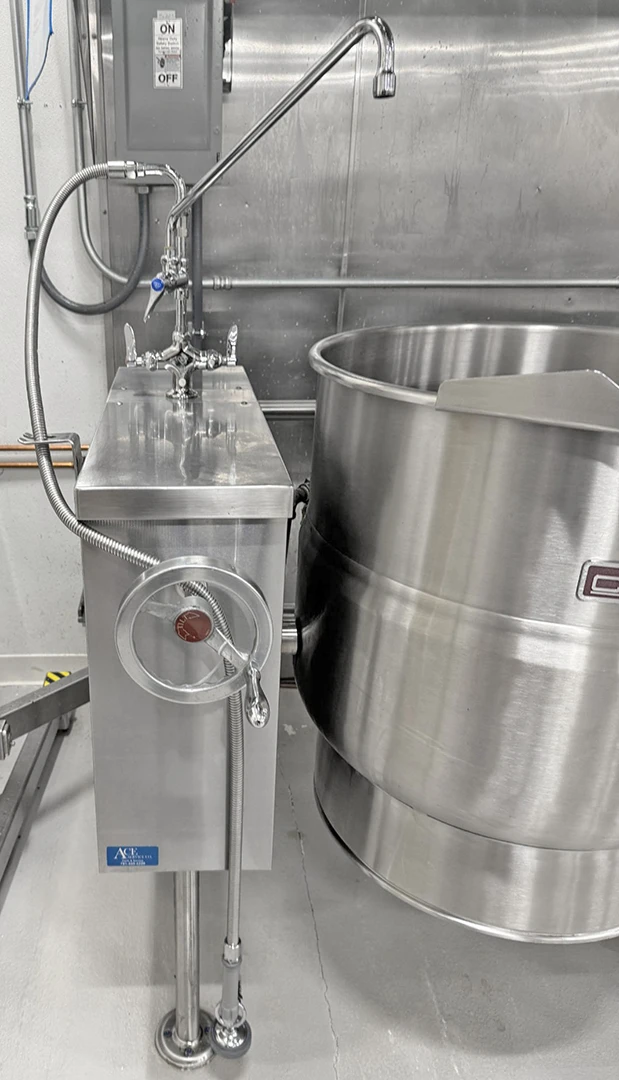

• Sealed stainless steel tilt mechanism for smooth operation
• Self-locking tilt control with 90° full-tilt capability
• Operates within a temperature range of 140°F to 285°F
• Stainless steel tubular legs with flanged feet for floor mounting
• Optional accessories: butterfly valves, gallon/liter markings, strainers, and heat shields

Specifications
• Manufacturer: Crown Steam (Middleby)
• Model: ELTM-40
• Capacity: 40 gallons (151 liters)
• Material: 304 stainless steel exterior, 316 stainless steel interior
• Steam Jacket: Lower 2/3 coverage
• Power: 480V, 3 Phase, 34.5A, 60 Hz
• Temperature Range: 140°F to 285°F
• Steam Pressure: Maximum 50 PSI

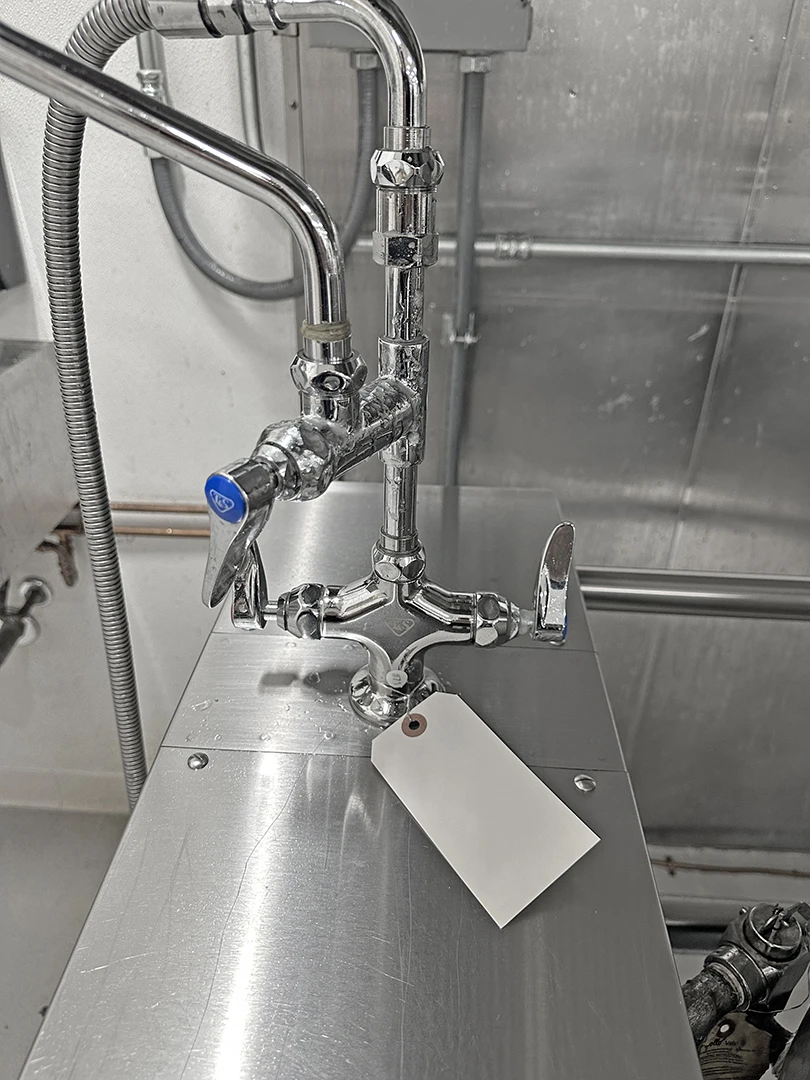

• Water Connections: 3/8″ O.D. tubing (optional cold water supply)
• Mixing Motor: 5 HP hydraulic-powered system
• Mixing Bridge: Swings 140° for easy cleaning and access
• Weight: 830 lbs. (377 kg)

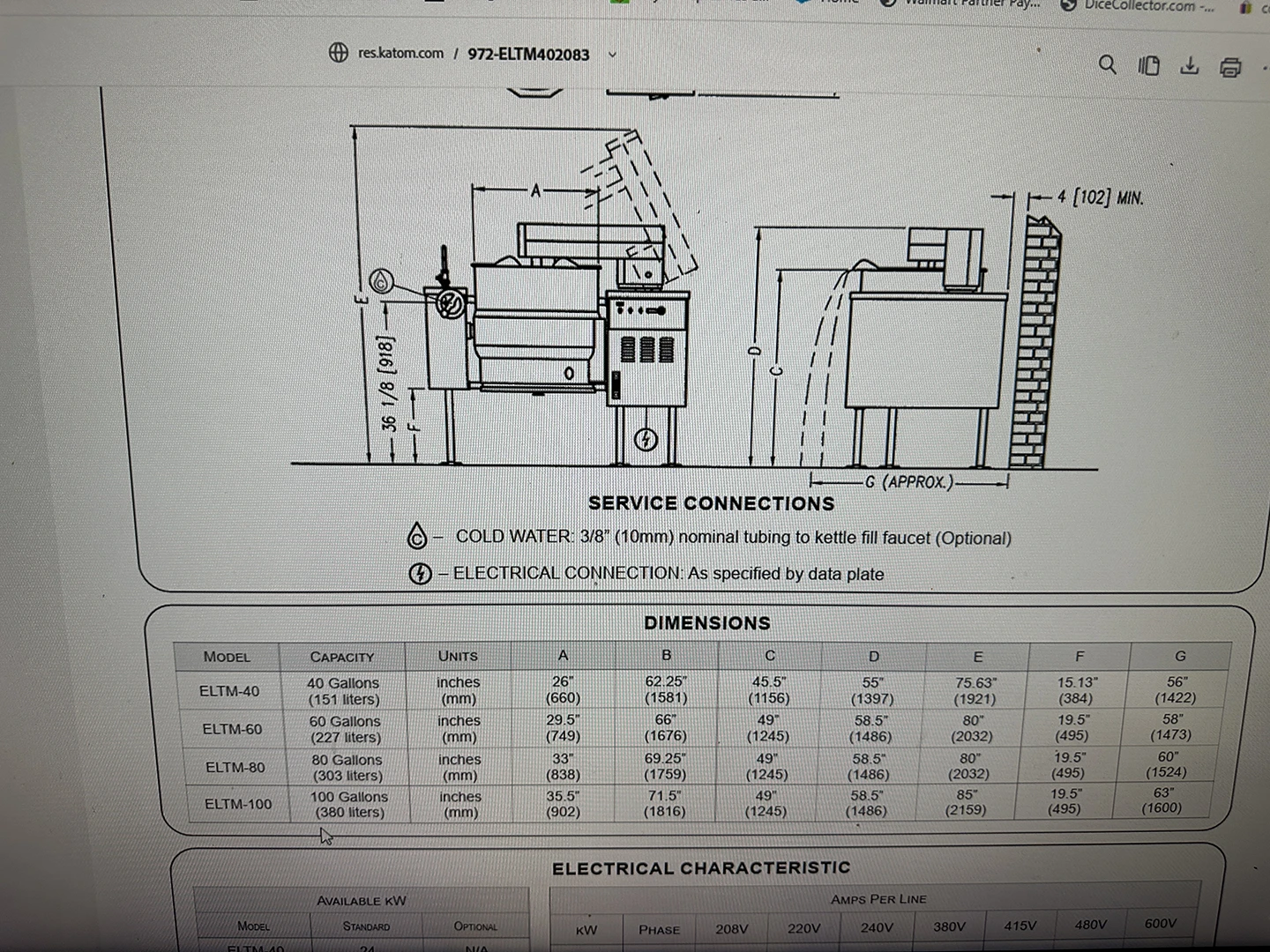

• Clearances: 3″ sides, 4″ rear
