Description

This unit came working out of a school.

• There are general scratches and scuffs as shown.

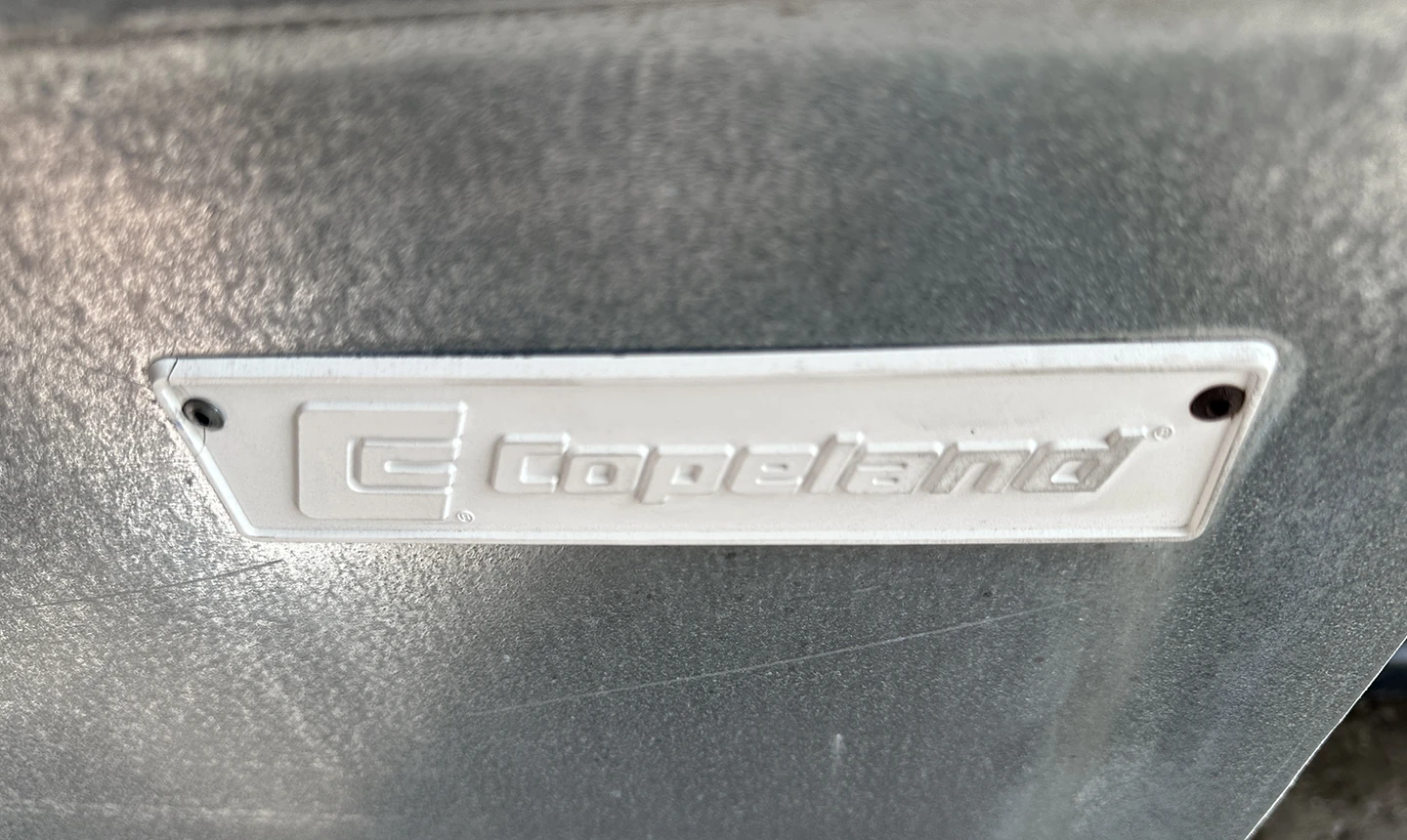

• The remote compressor is included. The refrigerant may not come with the unit.
• This unit was professionally disconnected.

Features
• Stainless Steel Exterior & Interior Construction
• Communications Capable & NAFEM Data Protocol Compliant
• On-Board Batch Data Printer
• Three Chilling Functions
• 1) Blast Chill (135° to below 41°F in approx. 90-minutes)
• 2) Soft Chill (for use with delicate products such as fresh seafood and produce)
• 3) Freeze (target temp can be set for as low as -22°F)
• Three Chilling Modes For Each Chilling Functions
• 1) By Temperature
• 2) By Product
• 3) By Time
• Automatic Refrigerated Hold Mode After Each Cycle
• Dual Self-Contained Refrigeration Systems (promotes energy efficient operation and maximizes compressor life)

Dimensions
• Length Overall: 48.5″
• Depth – Cabinet Only: 34″
• Depth – with Door Open 90: 65.13″
• Depth – Overall: 37.5″
• Clear Door Width: 27.25″
• Clear Door Height: 72.63″
• Height – Overall: 89.5
• Net Capacity cu. ft: 35
• Number of Pans 12″ x 20″ x 21⁄2″: 26
• Rack Capacity: 1

Electrical
• Voltage: 115V
• Phase: 1
• Frequency: 60Hz
• Amperage: 15.2A
• Breaker: 20A
• Wattage: 1725W

Refrigeration of Holding System
• Refrigerant: R404a
• BTU/HR – HP – 3⁄4 HP Holding Compressor: 3880
• Heat Load – BTU/HR: 7000
• Suction Line: 3⁄8″
• Liquid Line: 1⁄4″

Remote Condenser
• Refrigerant: R404a
• Voltage: 208-230V
• Frequency: 60Hz
• Phase: 1
• Recommended BTU/HR: 18,700 – 4 HP
• Suction Line: 7⁄8″ Ref. Lines at Blast Chill Unit
• Liquid Line: 1⁄2″ Ref. Lines at Blast Chill Unit
• Suction Line: 1.125″ Ref. Line on Remote Condenser
• Liquid Line: 1⁄2″ Ref. Line on Remote Condenser
