Description

This unit came working out of a facility.

• There are general scratches and scuffs from use.
• This is for just the dishwasher, tables are not included.

Features
• 40 racks / 160 covers per hour.
• All stainless steel construction assures long life and years of trouble free operation.
• Unique spray arm system features upper and lower stainless steel wash arms with reinforced end caps. Specially designed pull-pins allow wash arms to be easily removed for cleaning.
• Pump purging system improves results by eliminating soil and chemical carryover during rinse cycle.

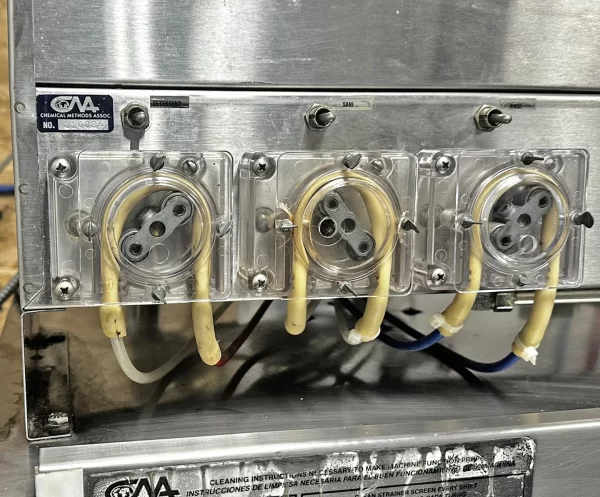

• Top mounted controls include built-in chemical pumps and deliming system that assures proper chemical usage.
• Auto start/stop makes operation safe and easy. n Integrated scrap tray prevents food soil from entering drain system.
• Water inlet comes with built-in strainer, prevents debris from clogging the water valve.
• Dishmachine comes with 2 dishracks.
• Stainless steel impeller offers extended life and service.

Specifications
• Dishwasher Height: Standard
• Application: Dishwashers
• Dishwasher Style: Corner
• Chemical Pumps: Yes
• Made in America: Yes
• NSF Listed: Yes
• High Temp: No
• Low Temp: Yes
• Horsepower: 1 hp
• Minimum Water Inlet Temperature: 120F (140F Recommended)
• Number of Cycles: 1 Cycle
• Plug Type: Hardwire
• Racks Per Hour: 40
• Type: Single Rack
• Wash Cycle Time: 90 Seconds
• Wash Tank Capacity: 1.7 gal.
• Water Inlet Size: 3/4″
• Water Temperature: 120 – 140 Degrees F
• Water Usage: 1.7 Gallons Per Rack

Dimensions and Weight
• Width: 25 3/4″
• Depth: 25 3/4″
• Height: 56 – 57″
• Interior Clearance: 17″
• Shipping Weight: 375 lb

Electrical
• Amps: 16 Amps
• Hertz: 60 Hz
• Phase: 1 Phase
• Voltage: 115 Volts
